    IoT Routers

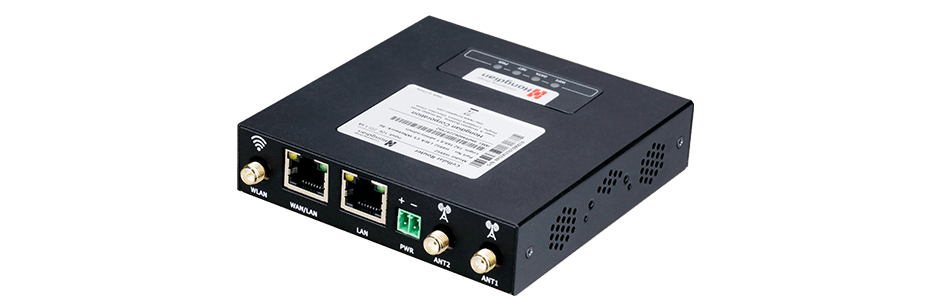

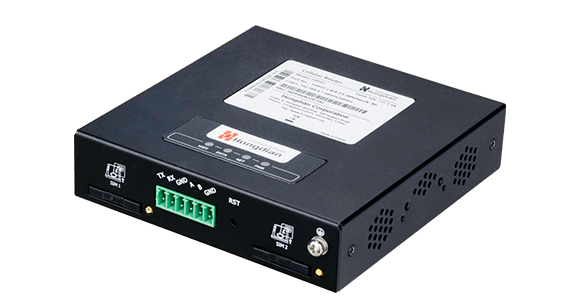

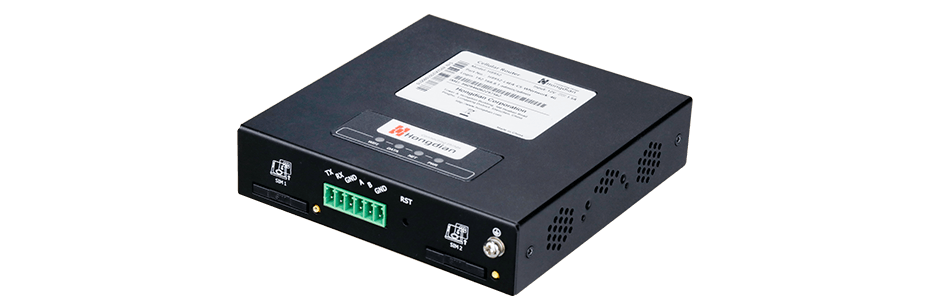

    H8952 RedCap IoT Router

    • Always-online Connectivity
    • Industry Demanded Stability
    • Data Transmission Security
    • Rugged Industrial Design
    Product Introduction
    H8952 is a RedCap IoT router designed for the growing 5G industrial applications, it provides enhanced celluar performance than 4G by complying 3GPP release 17 standard whilst can save your wallet from using full-capacity 5G. It will continue provide incredible performance as its predecessor H8951, while providing more features by upgrading with dual SIM, remote access, cloud management, VPN and SD-WAN. It provides excellent wireless communication solution to customer by connecting their end devices towards their business success. It supports RS-232 or RS-485 interface, with ultra-high cost performance. Wi-Fi station and Ethernet WAN can also be configured to help you build up different network topologies. Plus Links auto-failover, VPN data encryption, and multi-VPN tunnel backup machanism, giving you a secure and extremely reliable networking solution.
    Always-online Connectivity
    • 5G/4G/WiFi/Ethernet can be configured as link-backup mode for Internet auto-failover
    Industry Demanded Stability
    • Hardware watchdog & software defined auto-recovery mechanism in HongdianOS
    Data Transmission Security
    • Advanced VPN protocols integrated, provide secure M2M communication network
    Rugged Industrial Design
    • Wide temperature and voltage input range
    • Immunity to interference & low electromagnetic emissions
    Hardware
    CPU MIPS 24Kc @580 MHz
    RAM 128MB
    FLASH 16MB
    Cellular Interface
    Modem 1 x RedCap 5G
    Number of antennas 2
    Connector SMA-K
    SIM 2 x Mini SIM (2FF)
    Ethernet Interface
    Number of ports 2 x 10/100 Mbps, Ethernet
    Configuration 2 x LAN or 1 x LAN + 1 x WAN
    PoE output N/A
    Wireless interface
    Standards 802.11b/g/n, AP or station mode
    Frequency bands 2.4 GHz
    Speed 150Mbps
    Security WEP, WPA, WPA2
    Encryption 64/128 AES, TKIP
    Antennas 1
    Connector RP SMA-K

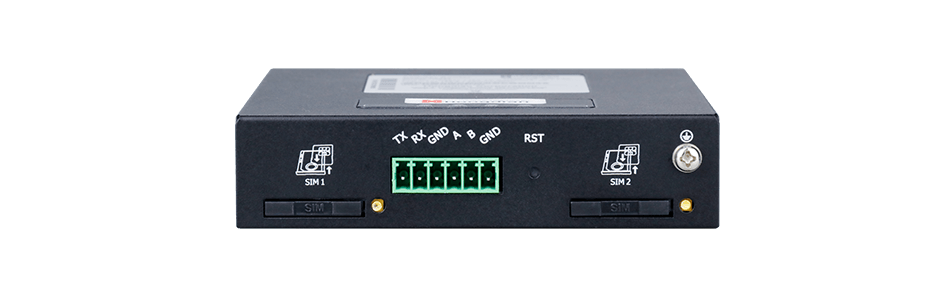

    Seiral interface
    Type 1 x RS-232 or 1 x RS-485 serial port
    Socket form 1 x 6-pin 3.5 mm female socket
    Signal definition RX,TX,GND (RS-232)
    A+,B-,GND (RS-485)
    Baudrate RS-232 (300-115200bps)
    RS-485 (300-115200bps)
    Software
    Auto fail-over Between:
    Cellular and WAN
    Cellular and Wi-Fi (station mode)
    WAN and Wi-Fi (station mode)
    Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, etc.
    Network APN, VPDN, VLAN, QoS
    Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc.
    Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
    Attack Prevention
    DDOS prevention, Anti port scanning
    Ipsec Encryption
    DES, 3DES, AES128, AES192, AES256
    OpenVPN Encryption
    BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
    AES-192-CBC, AES-256-CBC, SEED-CBC
    VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
    Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Cloud Platform
    Serial ports function Transparent, Modbus RTU, etc.
    Power Supply and Consumption
    Connector 2 pin socket
    Voltage input +5V~+36V DC
    Power consumption Idle: 100mA@12V DC
    Data transceiving: 350mA@12V DC
    Others
    Reset button Yes
    LED indicators 4 x indicators for WiFi DATA NET PWR
    Hardware watchdog Yes
    Physical Characteristics
    Ingress protection IP30
    Housing & Weight Metal, 300g
    Dimension 99.7×98.8×23.4(mm)
    Installations Desktop, wall mounting
    Operating temperature -30 ~ +75℃
    Storage temperature -40 ~ +85 °C
    Relative humidity ≤95%(no condensing)
    File Name
    Hongdian Datasheet-H8952 RedCap IoT Router-2025V1.0
    Part No. Network Frequencies Interfaces Certifications
    (*In progress)
    Regions
    H8952-L4EU-CS-W LTE Cat4 4G( LTE-FDD): B1/B3/B5/B8
    4G (LTE-TDD): B34/B38/B39/B40/B41
    3G: B1/B8
    SIM WLAN RJ45 RS232 RS485 CE*, RoHS* Europe
    2 N150 2 1 1
    H8952-L4EA-CS-W 4G( LTE-FDD): B1/B3/B5/B7/B8/B20
    4G (LTE-TDD): B38/B40/B41
    3G: B1/B5/B8
    2G: B3/B8
    CE*, RoHS* Europe,Africa,
    the Middle East,
    Korea, Thailand,
    India, Malaysia
    H8952-L4NA-CS-W 4G( LTE-FDD): B2/B4/B5/B12/B13/B14/
    B66/B71
    3G: B2/B4/B5
    FCC*, IC*, PTCRB* North America
    H8952-L4SA-CS-W 4G( LTE-FDD): B1/B2/B3/B4/B5/B7/B8/
    B28
    4G (LTE-TDD): B40
    3G: B2/B3/B5/B8
    RCM*, Anatel* Oceania,
    South America
    H8952-RCGL-CS-W RedCap 5G 5G NR SA: N1/N2/N3/N5/N7/N8/N12/
    N13/N14/N18/N20/N25/N26/N28/N30/
    N38/N40/N41/N48/N66/N70/N71/N77/
    N78/N79
    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/
    B13/B14/B17/B18/B19/B20/B25/B26/B28/
    B30/B66/B70/B71
    LTE-TDD: B34/B38/B39/B40/B41/B42/
    B43/B48
    GCF* Global
    H8952-RCCN-CS-W RedCap 5G 5G NR SA: N1/N3/N5/N8/N28/N41/N78/
    N79
    LTE-FDD: B1/B3/B5/B8
    LTE-TDD: B34/B38/B39/B40/B41
    CCC* Asia
    * For example, H8952-L4EU-CS-W, H8952 4G Router, support LTE Cat4, the application area is Europe, support RS-232 and RS-485,support Wi-Fi. H8952-L4EA-CS-W, H8952 4G
    Router, support LTE Cat4, the application area is Europe,Africa,the Middle East,Korea, Thailand,India, Malaysia region, support RS-485 and RS-232, support Wi-Fi.

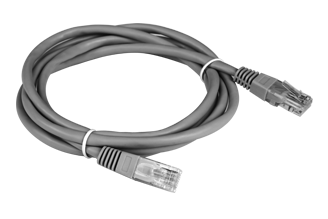

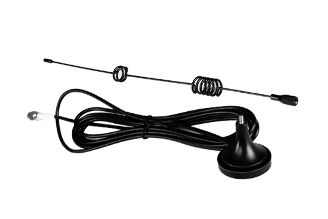

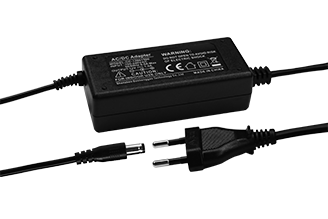

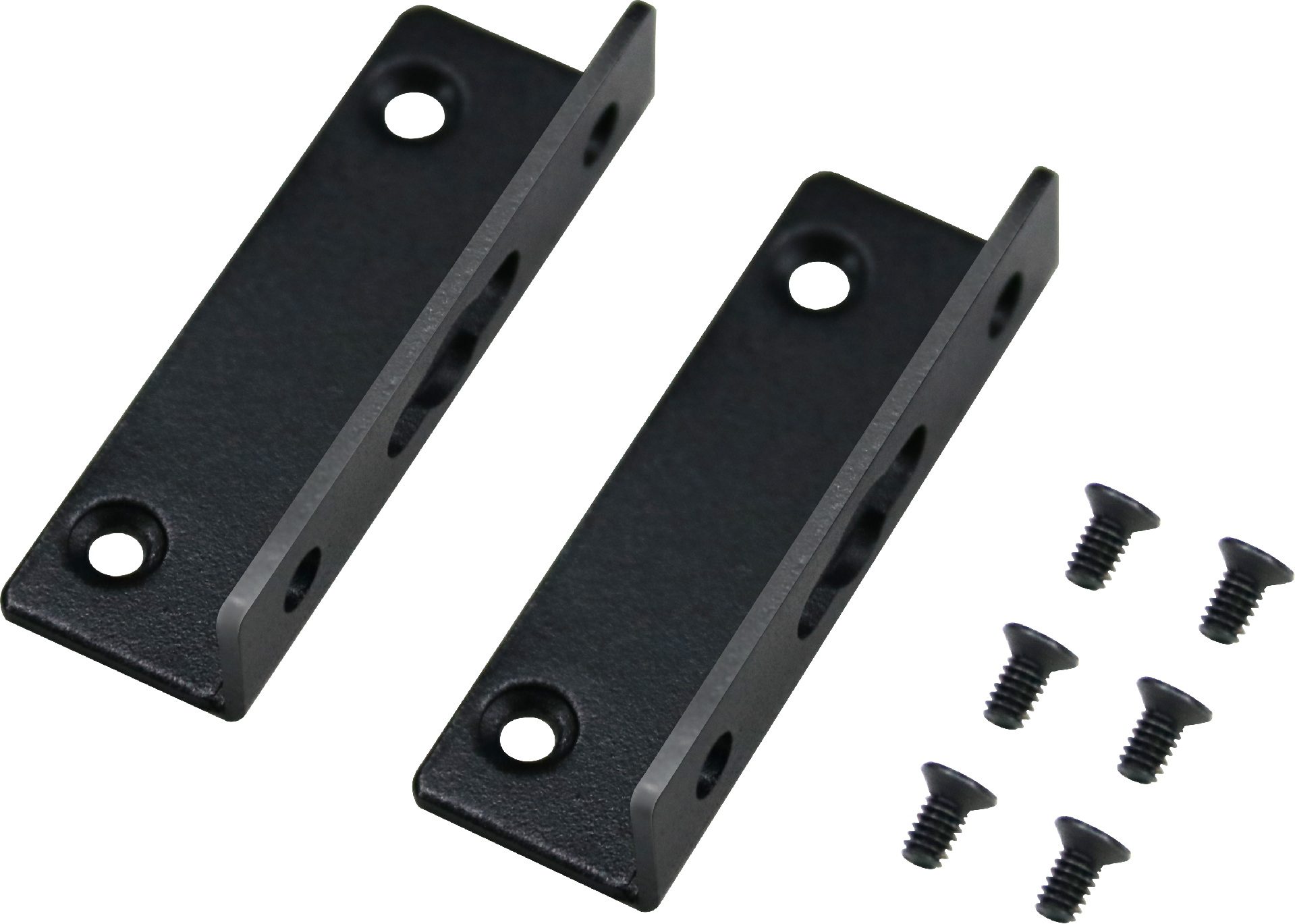

    Compatible Accessories
