    AIoT Gateway

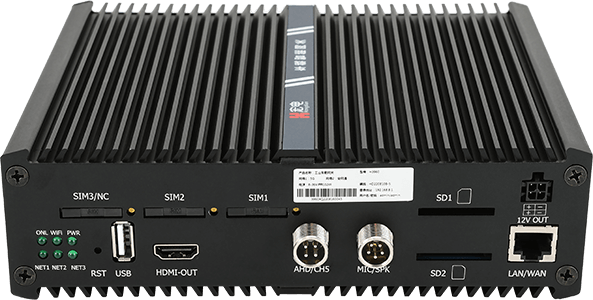

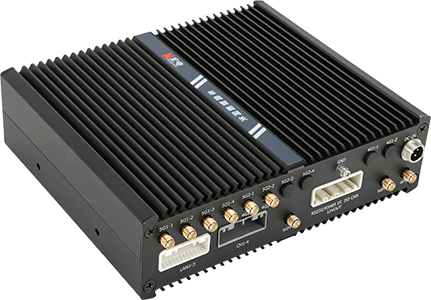

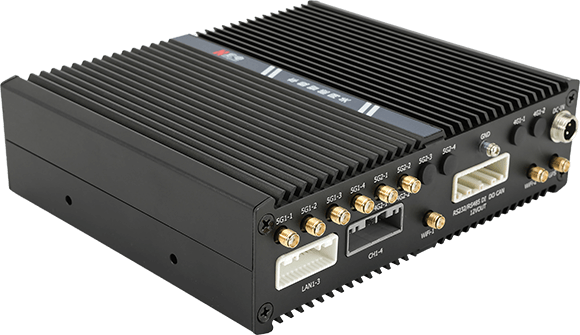

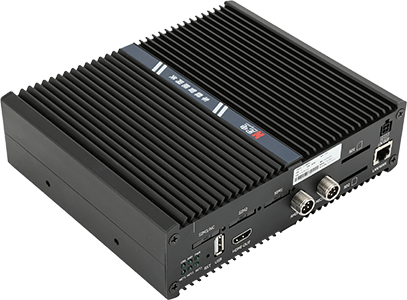

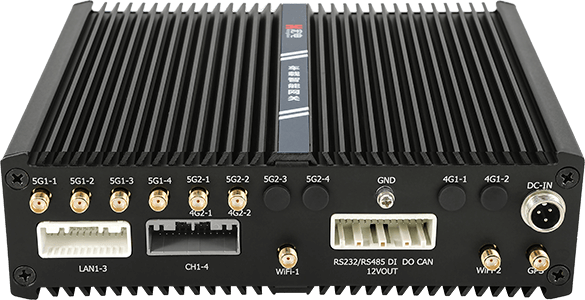

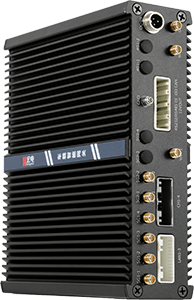

    H3960 Vehicle Gateway

    • Support dual 5G FRER(Frame Replication and Elimination for Reliability), as well as dual-module hot backup
    • Support 4 channels of 1080P HD video collection
    • Support mainstream communication protocols such as Modbus TCP/RTU, MQTT,etc.
    • Support DSM driving behavior detection, support safety driving alarms
    Product Introduction
    H3960 Vehicle Gateway is an AI intelligent gateway based on high-performance multi-core 64-bit ARM processor. It realizes real-time acquisition and transmission of multi-channel HD video through 5G multi-module load balancing and bandwidth binding, and supports DSM camera and DSM fatigue driving analysis. It can also be combined with the iScan platform to provide users with a total turnkey vehicle solution.
    Hardware
    CPU Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz
    NPU N/A
    Memory 2GB
    Built-in storage 8GB
    Cellular Interface
    Modem 1 or 2 x 5G NR SA/NSA or 1 x LTE CAT4 & 2 x 5G NR SA/NSA
    Number of Antennas 4 or 8 or 10
    Connector SMA-K
    SIM 3 × Mini SIM (2FF)
    Wireless Interface
    Standards 802.11b/g/n/ac, AP or station modes
    Frequency Bands 2.4 GHz & 5GHz
    Speed 1167Mbps
    Security WEP, WPA, WPA2
    Encryption 64/128 AES, TKIP
    Antennas 1
    Connector SMA-K
    GNSS Interface
    Number of Antennas 1
    Connector SMA-K
    Dead Reckoning N/A
    Peripheral Interface
    Ethernet 3 × LAN 10/100/1000Mbps + 1 × WAN/LAN 10/100/1000Mbps, Gigabit Ethernet
    POE N/A
    Serial Type 2 x RS-232 (2 x RS-232 port can be configured as a RS-485 port)
    2 x RS-485 serial port
    USB 1 x USB 2.0
    TF Card 2 x SD Card
    Can 1(Optional)
    IO 2 x DO, 4 x DI
    SFP N/A
    Audio 1× AHD, 1× MIC/SPK
    Display 1 x HDMI 2.0, 1x LVDS
    Software
    Video code H.265/H.264/VP9 4K@60fpsHD video decoding
    H.265/H.264/VP9 1080P@100fpsHD videoencoding
    Image processing BMP, JPG, PNG, GIF
    Auto Fail-over Between:
    Cellular and WAN
    Cellular and Wi-Fi (station mode)
    WAN and Wi-Fi (station mode)
    Network Muti-DNN, APN, VPDN, QoS, 5G LAN
    AI algorithm Support DSM driving behavior detection, support safety driving alarms such as speeding and fatigue
    Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
    VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
    Remote Management HTTP, Telnet, SSH, SMS
    SNMP V1/V2/V3, SNMP TRAP
    Hongdian Wedora Cloud Platform
    Serial Ports Function Transparent, Modbus RTU, etc.
    Power Supply and Consumption
    Connector 4 pin socket
    Voltage Input DC 12V～36V
    Power Consumption Idle: 400mA@24V DC, Data transceiving: 1.5A@24V DC
    Others
    Reset Button Yes
    LED Indicators 6 x indicators for PWR, WiFi, 4G, NET1, NET2, NET3,ONL
    Hardware Watchdog Yes
    Physical Characteristics
    Ingress Protection IP30
    Housing & Weight Metal, about 1200g（Dual 5G module）
    Dimension 235×164.3×55.5mm
    Installations Wall-mounting
    Operating Temperature -30 ~ +75 °C
    Storage Temperature -40 ~ +80 °C
    Relative Humidity 5 ~ 95%
    EMC
    ESD EN61000-4-2, level3
    RS EN 61000-4-3, level3
    EFT EN 61000-4-4, level3
    CS EN 61000-4-6, level3
    File Name
    Hongdian Datasheet-H3960 Vehicle Gateway-2024V1.0
    Product Part No. 5G Frequency 4G Frequency Interface Region
    5G modem 4G modem WLAN RJ45 RS232 RS485 CAN GPS

    H3960

    Vehicle Gateway

    		H3960-2N005L100-2W-8R-2C2S NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
    LTE-TDD:
    B34/B38/B39/B40/B41/B42/B43/B48
    LTE DL 4×4 MIMO:
    B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
    LAA:
    B46(only support 2×2 MIMO)
    WCDMA:
    B1/B2/B3/B4/B5/B6/B8/B19         		4G(LTE-FDD): B1/B3/B5/B7/B8/B20
    4G(LTE-TDD): B38/B40/B41
    3G: B1/B5/B8
    2G: B3/B8         		2 1 2 8 2 2 1 1 Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
    H3960-N0052L100-2W-8R-2C2S 1 2 2 8 2 2 1 1 Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
    H3960-N005L100-2W-8R-2C2S 1 1 2 8 2 2 1 1 Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
    H3960-2N005L108-2W-8R-2C2S NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
    LTE-TDD:
    B34/B38/B39/B40/B41/B42/B43/B48
    LTE DL 4×4 MIMO:
    B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
    LAA:
    B46(only support 2×2 MIMO)
    WCDMA:
    B1/B2/B3/B4/B5/B6/B8/B19         		4G(FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28
    4G(LTE-TDD): B40
    3G: B2/B3/B5/B8         		2 1 2 8 2 2 1 1 Oceania, South America
    H3960-N0052L108-2W-8R-2C2S 1 2 2 8 2 2 1 1 Oceania, South America
    H3960-N005L108-2W-8R-2C2S 1 1 2 8 2 2 1 1 Oceania, South America
